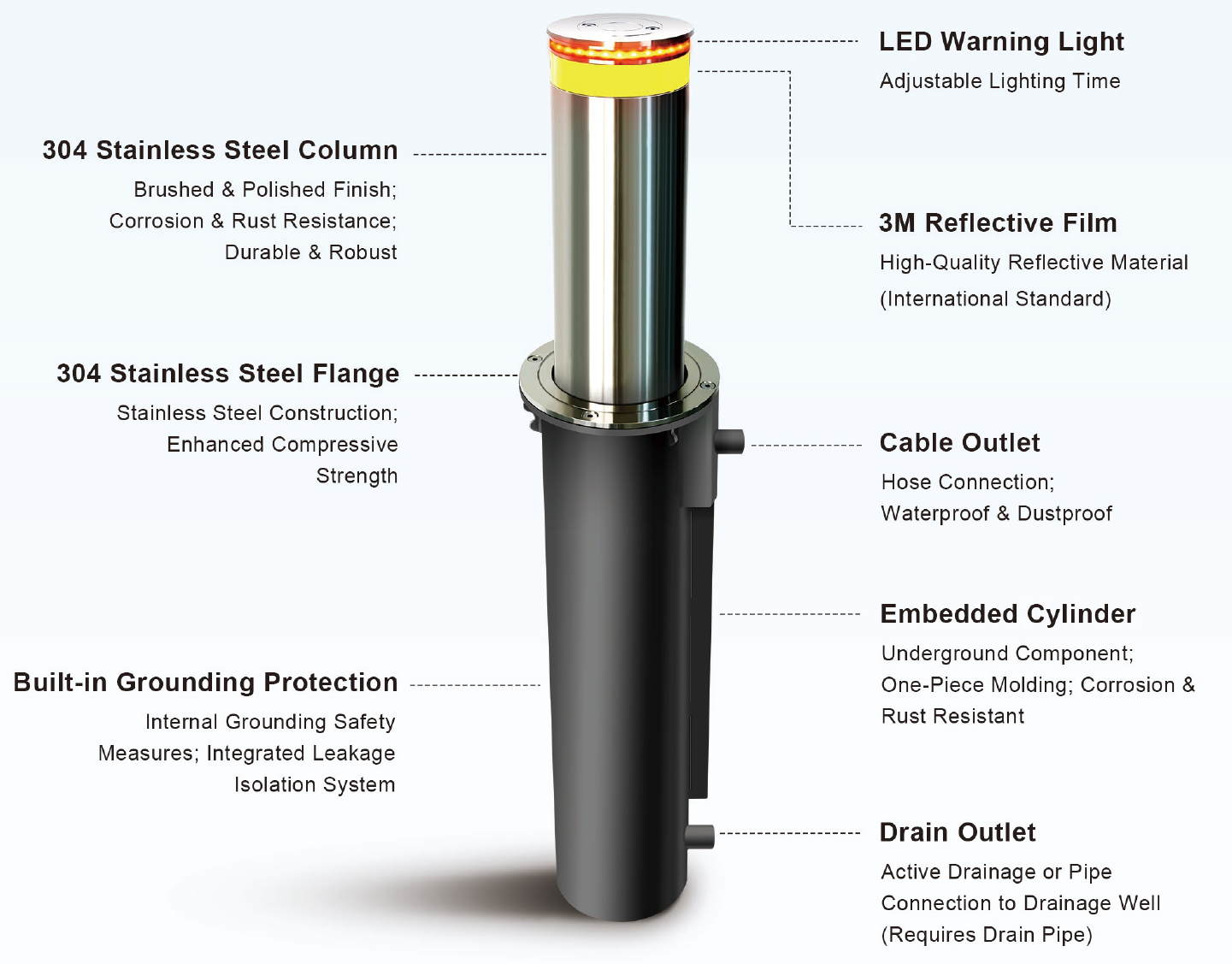

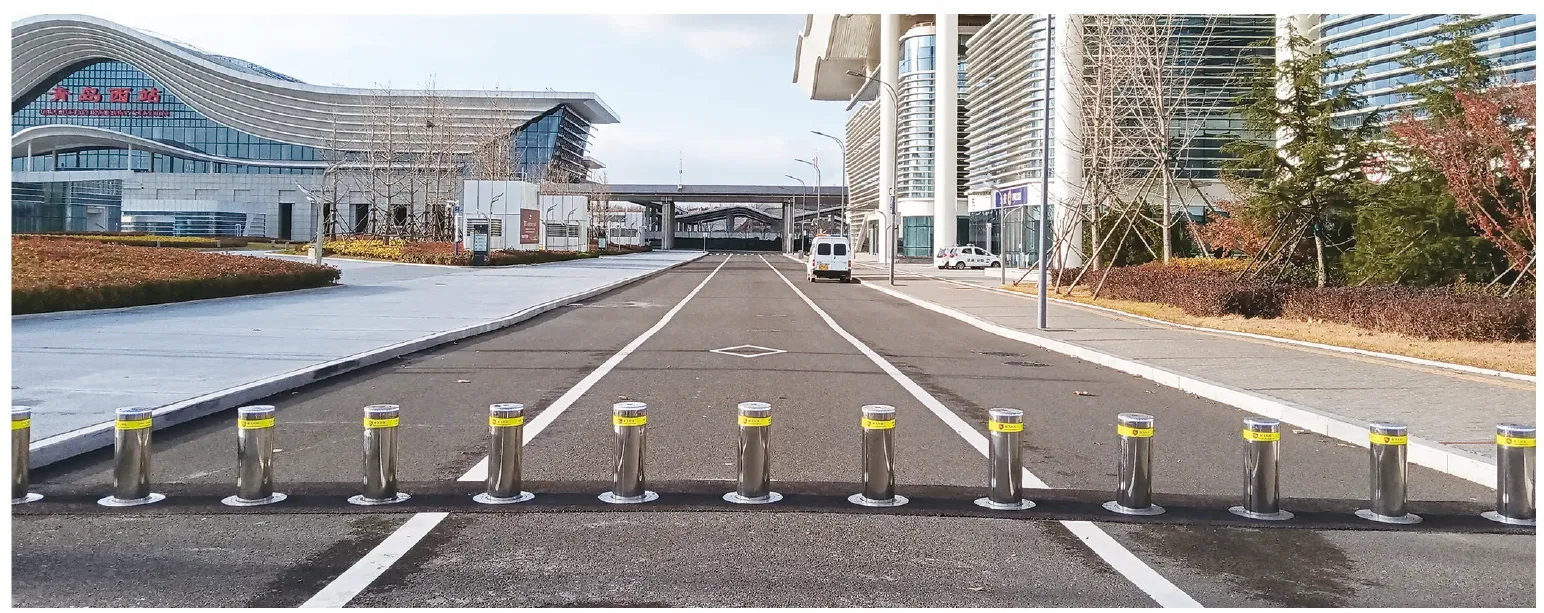

An automatic rising bollard is an electro-hydraulic or electro-mechanical vehicle control device installed below ground level. It rises to block unauthorized vehicles and retracts to allow authorized passage. The system consists of a stainless steel column, drive unit, embedded cylinder, control cabinet, and drainage system. Operation can be triggered via remote control, access control systems, license plate recognition, ground loop sensors, or a central control room. The typical rise/fall time is 3-5 seconds.

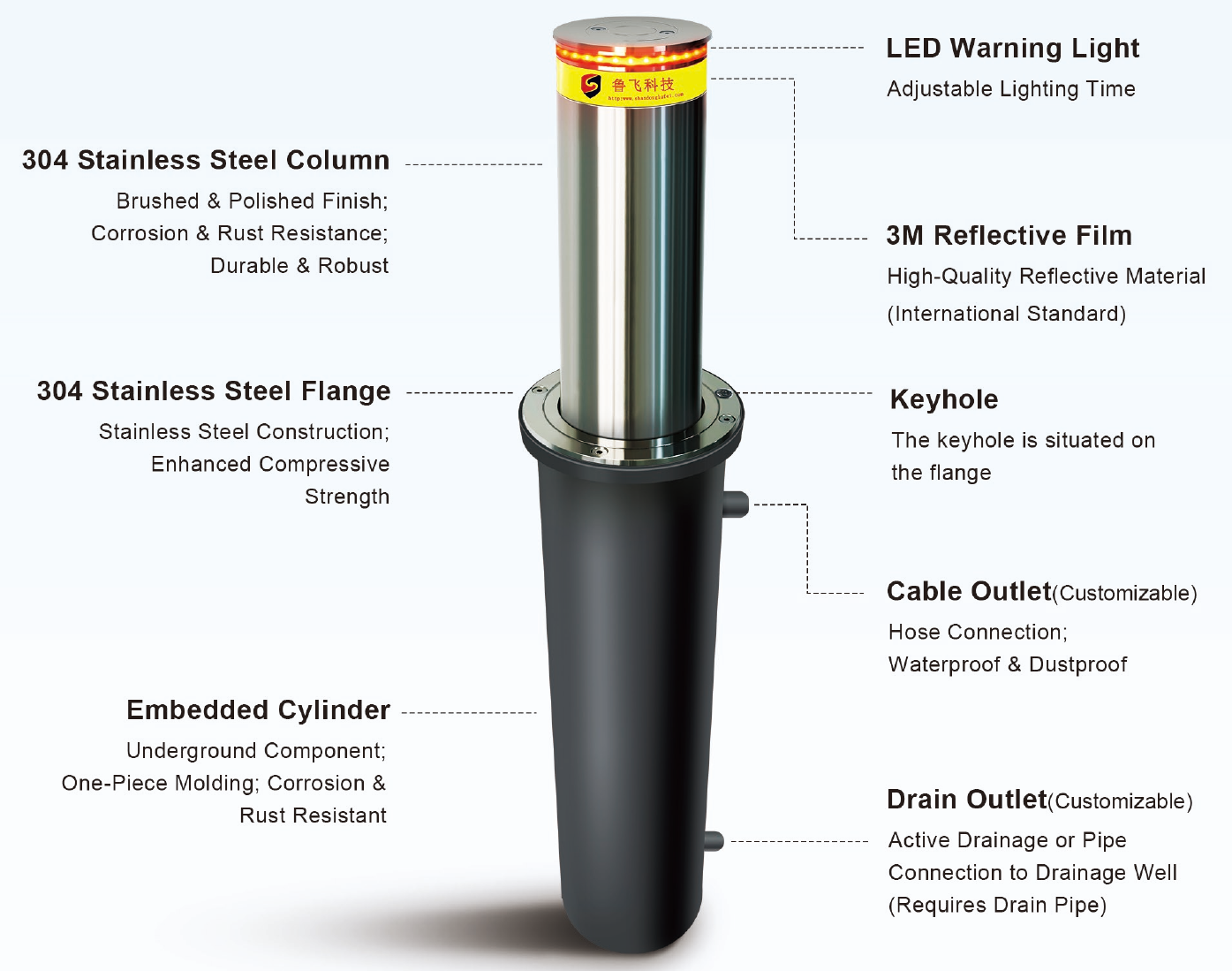

Automatic bollards are powered by electro-hydraulic or electro-mechanical drives and can be operated remotely or automatically without manual intervention. They are ideal for high-frequency access points such as government campuses, schools, airports, and commercial plazas. Semi-automatic bollards use gas-spring assistance and mechanical key operation — the user turns a key to raise the bollard and manually pushes it down. They require no on-site power or complex wiring, making them suitable for low-frequency locations like residential fire lanes, pedestrian zones, and temporary control points.

K12 is a U.S. Department of State vehicle impact standard (ASTM F2656 M50). It means the bollard can stop a 6.8-ton truck traveling at 80 km/h (50 mph). During testing, a flatbed truck loaded with 6.8 tons is accelerated to 80 km/h and strikes the bollard at a 90-degree angle. The test passes if the vehicle bed does not penetrate beyond 1 meter behind the bollard. K12 certification is required for embassies, military bases, airports, and other critical infrastructure with high terrorism threat levels.

IP68 is the highest ingress protection rating. "6" means complete dust protection, and "8" means the device can be submerged in water beyond 1 meter depth for extended periods without damage. For rising bollards, IP68 ensures the embedded cylinder and drive unit operate reliably under heavy rain, flooding, or temporary submersion conditions without electrical failure. This rating is especially critical for coastal regions, high-rainfall areas, and flood-prone locations.

Bollard installation requires: 1) Foundation excavation — typically 800×800mm wide and 1100mm deep for standard automatic bollards, larger for K12-rated models; 2) Concrete pouring — C30 grade or higher with proper curing; 3) Drainage — gravel drainage layer at the pit bottom connected to drainage pipes; 4) Electrical wiring — armored SWA cable to the control cabinet, with UPS backup recommended; 5) Surface restoration — reinstating the road surface after installation. Professional site survey and engineering guidance are strongly recommended.

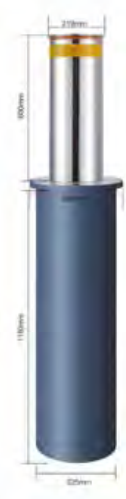

Consider these factors: 1) Security level — standard for general areas, K12-rated for high-security sites; 2) Traffic frequency — automatic for high-traffic, semi-automatic for low-traffic; 3) Environmental conditions — fully sealed models for coastal/wet areas (YC-02), heating elements for cold climates; 4) Installation constraints — shallow-mount or removable bollards for areas with underground utilities; 5) Budget and maintenance capacity. Contact our engineering team with your site conditions and requirements for a tailored recommendation.

With proper use and regular maintenance, automatic bollards typically last 10-15 years. Monthly checks include hydraulic oil level and quality inspection. Semi-annual maintenance includes cleaning the column surface and removing debris from the embedded cylinder. Annual maintenance requires hydraulic oil replacement and seal inspection. Electrical components need periodic checks of control cabinet wiring, remote control batteries, and sensor sensitivity. In coastal environments, rinse the stainless steel column monthly with fresh water to prevent salt accumulation.

In a standard configuration, the bollard will stay in its current position (raised or lowered) during a power failure. We recommend installing a UPS (uninterruptible power supply) for security-grade bollards, allowing dozens of normal operating cycles during an outage. Additionally, all automatic bollards feature a manual emergency override — a special handle or key allows manual raising or lowering when power is completely unavailable, ensuring vehicle passage in emergencies.

Yes. Our bollard control cabinets provide standard dry-contact signal interfaces and RS485/Modbus communication protocols for seamless integration with LPR/ANPR systems, RFID readers, facial recognition gates, QR code scanners, remote controls, and central management platforms. The control system supports multiple operation modes: automatic drop-and-rise for authorized vehicles, scheduled time-zone management, and whitelist-based access with pass records.

Our rising bollards support multiple international electrical standards: standard AC 220V/50Hz (China, Europe, Southeast Asia, Middle East), customizable AC 110V/60Hz (North America, Taiwan, Japan), and AC 380V three-phase (for high-power hydraulic systems). The control cabinet uses a wide-voltage switching power supply design. Please specify your project voltage and frequency standards when ordering, and we will configure the system before shipment.

Standard models (e.g., YC-01, YC-03) have a production period of 15-20 working days, including column machining, hydraulic assembly, electrical wiring, and factory testing. Custom models (e.g., non-standard height, special surface treatment, 316 stainless steel) typically require 25-35 working days depending on configuration. Bulk orders (50+ units) may be delivered in batches based on production capacity. We provide real-time production tracking so customers can monitor order status. Shipping times vary by destination and customs clearance.

We offer a standard 2-year comprehensive warranty covering manufacturing defects in the drive unit, electrical control system, and column structure. During the warranty period, we repair or replace defective components free of charge. Exclusions include improper installation, misuse, unauthorized modification, or natural disasters. We also provide lifetime technical support — after the warranty period, only replacement part costs apply. Extended warranty plans (3-year and 5-year) are available upon request.

Our bollard columns are manufactured in two primary stainless steel grades. Grade 304 stainless steel is the standard option, offering excellent corrosion resistance and mechanical strength suitable for most indoor and outdoor applications. Grade 316 stainless steel contains molybdenum for superior chloride resistance, making it ideal for coastal environments, areas near chemical plants, and locations where de-icing salts are heavily used. For customized aesthetics, we also offer 304 stainless steel with PVD (Physical Vapor Deposition) coating in colors such as black titanium, gunmetal, and champagne gold.

Standard rising bollards operate in ambient temperatures from -20°C to +50°C. For regions where winter temperatures drop below -20°C, we recommend adding column heating elements and a temperature control module. The heating system activates automatically when the temperature falls below the set point, preventing ice formation inside the embedded cylinder. Cold-weather hydraulic fluid maintains proper viscosity and working pressure at low temperatures. With the heating option, bollards can operate reliably in extreme cold down to -40°C.

Shallow-mount bollards are specially designed for sites where deep excavation is impractical, requiring only 300-500mm foundation depth compared to 1100mm for standard models. They are ideal for: urban roads and sidewalks with dense underground utilities, historic district preservation projects, existing parking lots and commercial plazas where pipes or cables are already buried, and areas above subway tunnels or basement slabs. Shallow-mount bollards typically use electro-mechanical drive and offer 400-500mm rise height, sufficient for most vehicle control applications.

Fixed bollards and automatic bollards serve complementary roles in perimeter security and are often combined for multi-layer protection. A typical configuration: fixed bollards installed on both sides and at lane dividers to guide vehicle flow and prevent circumvention of the automatic bollards; automatic bollards in the main entry lanes for flexible vehicle release control; and fixed bollards along pedestrian walkways and secondary entrances as permanent barriers. This combined approach ensures adequate security while optimizing total project cost, and is the most common configuration for school, campus, and commercial projects.

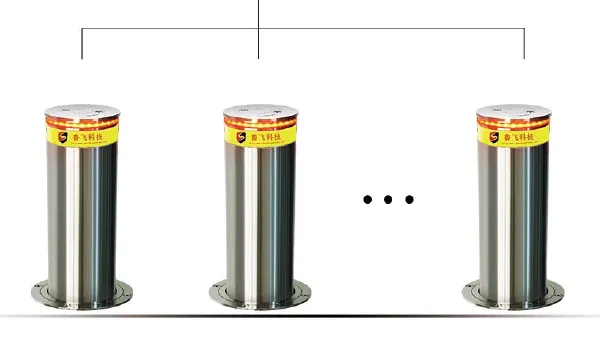

Rising bollards support a wide range of control methods: handheld remote controls (433MHz/315MHz RF, effective range 50-150 meters), card/fingerprint/facial recognition access control, automatic license plate recognition (LPR/ANPR), ground loop sensors, radar detectors, mobile APP remote control, and central control room management platforms. Multiple bollards can be connected through the control cabinet in parallel or series for synchronized operation — when an authorized vehicle triggers entry, all bollards in the group retract simultaneously, then rise in sequence after a preset delay, ensuring safe and efficient multi-lane traffic management.

Hydraulic bollards (electro-hydraulic drive) are the most mature technology: they offer smooth operation, high lifting force, low noise, and are ideal for heavy-duty and high-frequency use. However they require hydraulic fluid, need heating in cold climates, and seals require periodic replacement over the long term. Electro-mechanical bollards (lead screw or rack-and-pinion drive) offer simpler construction, no hydraulic fluid maintenance, faster response, and lower energy consumption for low-to-medium frequency use. Their main drawback is mechanical wear over time and slightly higher noise under high-load conditions. The choice depends on your specific project requirements.

Exporting rising bollards to international markets requires several technical certifications and documents: CE certification (EU mandatory, covering EMC and LVD directives), ISO 9001 quality management system certification, IP68 waterproof and dustproof test reports, K12/PAS 68 impact resistance certification reports, material certificates (304/316 stainless steel grade reports), Certificate of Origin (CO), MSDS (hydraulic fluid safety data sheet), export customs declaration documents, and destination country customs clearance documentation. Our products have been exported to over 50 countries, and we have extensive experience assisting clients with all required export certifications and documentation.

The bollard embedded cylinder is installed below ground level, and rainwater or groundwater can seep into the cylinder over time. Without a proper drainage system, accumulated water can cause several problems: freezing in winter creates ice expansion force that may damage the column structure and drive unit; long-term water immersion accelerates electrochemical corrosion at stainless steel weld joints and internal metal components; and the hydraulic system or electrical components face increased failure risk from moisture. The standard drainage solution includes a 100mm gravel drainage layer at the pit bottom, a 110mm PVC drain pipe connected to a nearby stormwater drain or ditch, a minimum 2% pipe slope, and a check valve to prevent backflow.

Surface restoration after bollard installation directly affects both functionality and aesthetics. Key requirements include: matching the original pavement material — hot-mix asphalt for asphalt roads (layered compaction), same-grade concrete with joint cutting for concrete surfaces, and precisely cut paving materials tightly fitted around the column for paved areas. Restoration thickness depends on load rating — heavy vehicle lanes require ≥200mm reinforced concrete base plus 50mm surface layer. A 5-10mm expansion joint around the column must be filled with flexible sealant. The restored surface must match the original paving elevation with smooth gradients and no ponding areas.

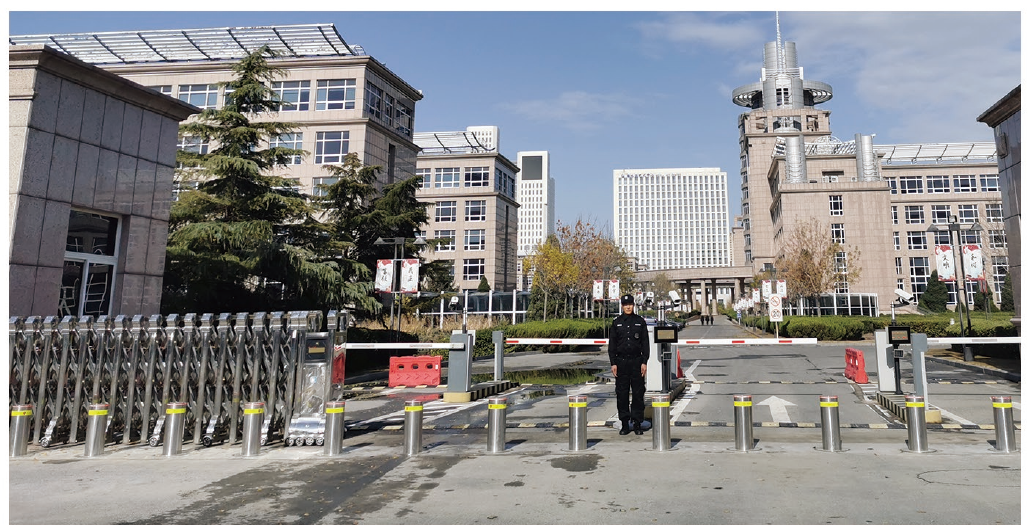

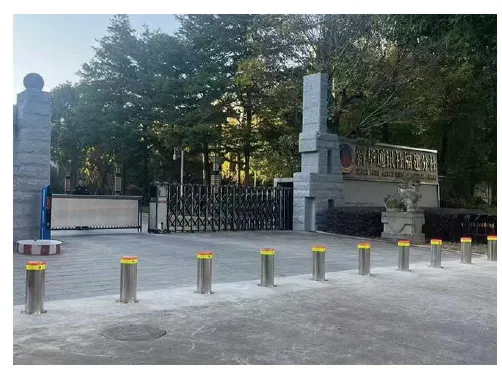

Rising bollards are increasingly popular in residential communities for various control scenarios: Main entrances — paired with license plate recognition and intercom systems for automatic vehicle access control, preventing unauthorized vehicles from entering; Fire lanes — semi-automatic or removable bollards that stay raised to prevent illegal parking but can be quickly opened in emergencies; Basement garage entrances — automatic bollards working alongside boom barriers to prevent tailgating and wrong-way entry; Pedestrian access points — fixed bollards or removable bollards forming vehicle-proof walkways while allowing wheelchair and stroller passage.

Bollard quality can be evaluated from several aspects: Column material — verify the stainless steel grade (304/316) and wall thickness (standard ≥6mm), quality columns have uniform surface treatment with no pitting; Drive system — for hydraulic models, check oil seal brand and system pressure stability; for electro-mechanical models, check the motor brand and lead screw material; Protection rating — verify the IP68 test conditions and actual sealing process; Control cabinet — quality cabinets use branded electrical components with overload protection, leakage protection, and manual override; Factory capability — conduct a site visit or video factory inspection to assess production lines, quality control processes, and production capacity.

Common bollard issues and troubleshooting: Column will not rise — first check power supply and control cabinet indicator lights, then check remote control batteries and fuse, finally check hydraulic oil level (hydraulic models) or motor thermal protection (electro-mechanical models); Column rises but will not descend — check if ground loop sensors or radar detectors are being triggered by metal objects, check control signal wiring for looseness, perform manual override test to determine if the issue is electrical or mechanical; Abnormal rising/descending speed — for hydraulic models, check oil level and quality for emulsification; for electro-mechanical models, check lead screw lubrication and motor brush wear. If the issue cannot be resolved, contact our after-sales technical team.

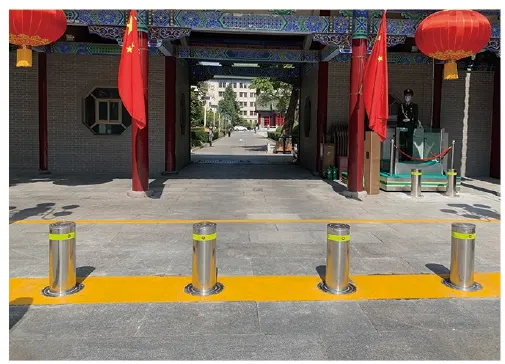

Bollard column diameter and height should be determined based on project site conditions and control requirements. Common column diameters: 168mm (6 inch) — the most popular standard size, suitable for most school and commercial projects; 219mm (8 inch) — heavy-duty, ideal for industrial parks and logistics lanes; 273mm (10 inch) — heavy-duty specification for military bases and critical infrastructure. Standard rise height is 600mm, which meets the interception requirements for most vehicle chassis heights. Custom heights of 500mm or 800mm are available for special projects. Selection should consider site road width, vehicle types passing through, required interception height, and foundation construction conditions.

Yes. Our bollard control cabinets support standard Modbus RTU and Modbus TCP communication protocols, connecting to Building Management Systems (BMS) and integrated security platforms via RS485 interface or Ethernet gateway. Through BMS integration, you can achieve: real-time monitoring of each bollard status (raised/lowered/fault) from a central control room; scheduled operation (e.g., weekday 7:00-9:00 keep bollards lowered for peak traffic); automatic fire alarm linkage — all bollards lower when fire alarm is triggered; video surveillance integration — automatically retrieve corresponding camera footage when bollards operate; and traffic report generation for vehicle entry data analysis.

Our rising bollards are designed for extreme environmental conditions. For heavy rain: IP68 waterproof rating ensures reliable operation under prolonged flooding; the control cabinet uses an IP65-rated enclosure with waterproof aviation connectors for all electrical interfaces. For typhoon-prone areas: the column features a reinforced guide structure that withstands significant lateral wind loads; however we recommend lowering bollards during extreme typhoon warnings to reduce wind stress. For sandstorm environments: the column surface receives hard-wear-resistant treatment; the control cabinet includes dust-proof filters; and the hydraulic system uses a fully sealed design to prevent sand ingress. Our products are operating reliably across diverse climates in the Middle East, Southeast Asia, and North America.

We offer two installation service models: Supervised installation — your local construction team performs the work while we provide detailed installation drawings, technical specifications, video guidance, and remote engineering support. Our engineers can answer technical questions online during the installation process. Turnkey installation — we dispatch or coordinate a local partner engineering team to complete all installation work including foundation excavation, concrete pouring, equipment installation, electrical wiring, system commissioning, and road surface restoration. Installation costs are evaluated based on quantity, site conditions, and construction complexity, including equipment transport, construction labor, concrete materials, auxiliary materials, and commissioning services.

Although stainless steel bollards have excellent inherent corrosion resistance, additional surface treatments may be needed in specific environments. Common surface finishes include: Brushed finish — the most popular standard treatment, creating a uniform fine-grained texture that resists scratching and is easy to clean; Mirror polish — achieves a reflective mirror finish for premium appearance but requires more daily maintenance as fingerprints and stains are more visible; Paint coating — fluorocarbon or polyester powder coating over the stainless steel surface for customized colors, enhancing corrosion and weather resistance; PVD (Physical Vapor Deposition) coating — forms a titanium or chromium-based coating on the stainless steel surface for decorative effects such as black titanium, gold, or gunmetal. Choose the appropriate surface treatment based on the use environment and budget.

Rising bollards are professionally packaged for safe transportation. Column packaging: each bollard column is wrapped in anti-static cling film, covered with thick foam tubing or pearl cotton protector, then packed into a custom wooden crate or heavy-duty carton with cushioning material between the column and box. Embedded cylinders and accessories: packed separately in individual cartons or wooden crates, with small parts such as bolts and seals sealed in waterproof bags then placed in the accessory box. Hydraulic systems and control cabinets: sealed in moisture-proof bags, packed in wooden crates with internal cushioning material. All crates have pallet bases for forklift handling, with external markings for product information, fragile indicators, and lifting center of gravity. Export sea-freight packaging includes additional moisture and rust protection with waterproof liners and desiccant packs.

Automatic rising bollards use two drive unit installation methods. Integrated installation is the most common — the motor or hydraulic pump is built into the embedded cylinder together with the column, creating a compact structure with simple installation. The drive unit features IP68 waterproof sealing to ensure normal operation in water-logged conditions. Split installation is used for centralized hydraulic power units (HPU) — the hydraulic power unit is installed in a remote control room or waterproof enclosure and connects to multiple bollards through underground hydraulic pipes, enabling unified maintenance and management. All electrical connectors use waterproof aviation plugs, and the control cabinet includes leakage protection and overload protection.

Standard automatic bollards have a rise time of 3 to 5 seconds and a fall time of 3 to 4 seconds, depending on column diameter, rise height, and drive power. For hydraulic bollards, the rise speed can be infinitely adjusted via a throttle valve inside the hydraulic system. The fall speed is typically controlled by gravity or hydraulic return flow and can also be adjusted within a certain range. For electro-mechanical bollards, the rise/fall speed is determined by motor speed and gear ratio — fixed speed in standard configuration. For special projects requiring faster operation (under 2 seconds), high-power drive configurations or custom solutions are available. Please specify speed requirements during project consultation.

The bollard control cabinet is the system control core. Standard configuration includes: Main control unit — microprocessor-based control system managing bollard operation logic and timing; Power module — wide-voltage switching power supply (AC 110V-240V auto-ranging) providing stable DC power; Drive module — motor or hydraulic pump start/stop control with current monitoring; Signal interfaces — dry-contact input/output ports for connecting remote receivers, access control signals, ground loop sensors, license plate recognition, and other external devices; Safety protection — overload protection, leakage protection, overheat protection, overcurrent protection, and motor stall protection; Manual operation — control panel with manual raise/lower buttons and emergency stop button for on-site commissioning and emergency operation.

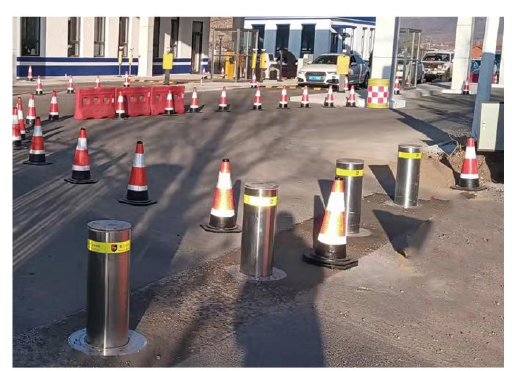

The recommended center-to-center spacing between bollards depends on the vehicle types being controlled. Standard vehicle lanes (cars, SUVs): 1200mm to 1500mm spacing effectively blocks vehicles without excessively restricting passage width. Truck and large vehicle lanes: 1500mm to 1800mm spacing, while verifying that the vehicle minimum ground clearance exceeds the bollard rise height. Pedestrian shared zones: 1000mm to 1200mm spacing to prevent pedestrians from passing between bollards. High-security anti-terrorism sites: spacing should not exceed 1200mm to ensure a 6.8-ton truck cannot force its way between bollards. Proper spacing is critical for the effectiveness of the security barrier system.

Bollard installation location must consider these safety clearance requirements: Distance from building walls — minimum 1000mm to prevent foundation excavation from affecting building foundations and wall structures; Distance from curbs — minimum 300mm to ensure adequate concrete cover outside the embedded cylinder; Distance from underground utilities — conduct utility detection before construction, maintain 500mm+ safe distance from gas pipes, power cables, and communication fiber optics; Distance from drainage channels and manholes — minimum 500mm to avoid affecting drainage structure integrity and access space; Distance from opening doors and windows — minimum 2000mm to prevent bollards from blocking normal door and window operation.

Rising bollards have relatively low power consumption — electricity is mainly consumed during the raising/lowering cycle, with negligible standby consumption. A standard automatic bollard (electro-hydraulic, 350W motor) consumes approximately 0.003-0.005 kWh per cycle. At 100 cycles per day, daily consumption is about 0.3-0.5 kWh, annual consumption about 110-180 kWh, costing approximately $15-25 USD per year. Electro-mechanical bollards use smaller motors (150-250W) and consume about 30% less energy than hydraulic models. Standby power consumption is under 5W and can be considered negligible. Centralized HPU systems share one pump station across multiple bollards, further reducing per-unit energy consumption.

Yes, rising bollards and boom barriers can work together to form a dual-layer vehicle control system. A standard integration scheme: the boom barrier at the entry side verifies vehicle authorization, while the rising bollard at the exit side serves as a physical barrier. When an authorized vehicle approaches, the license plate recognition or card system verifies access first — upon approval, the boom barrier lifts and the bollard simultaneously lowers. The vehicle passes the entry barrier and enters the bollard zone (detected by ground loop sensors). The bollard stays lowered until the vehicle completely passes the exit loop sensor, then automatically rises while the barrier lowers. This dual verification system effectively prevents tailgating and is ideal for high-security locations such as schools and government campuses.

Bollard foundation design depends on model type, soil conditions, and load requirements. Standard automatic bollards (e.g., YC-01) require foundation dimensions of 800×800×1100mm (L×W×D), using C30 or higher grade concrete (compressive strength ≥30MPa), with approximately 0.7 cubic meters of concrete per bollard. K12 crash-rated bollards require 1200×1200×1500mm foundation, using C40 or higher grade concrete (compressive strength ≥40MPa) with reinforcement design by a structural engineer, consuming approximately 2.2 cubic meters of concrete. A 100mm gravel drainage layer is required at the foundation bottom for drainage and load distribution. In freeze-thaw regions, antifreeze admixture should be added to the concrete.

Bollard installation acceptance testing should follow these steps: Visual inspection — column verticality deviation not exceeding 3mm/m, no scratches or dents on the surface, road surface restoration level with no ponding; Lift function test — 10+ complete rise/lower cycles without jamming, abnormal noise, or vibration, within standard timing range; Control method test — test all control methods including remote control, control panel, manual override, and external signals (e.g., license plate recognition), verifying normal response for each method; Safety function test — verify overload protection and leakage protection operate correctly, emergency stop button is effective, and manual override operates smoothly; Waterproof test — pour an appropriate amount of water into the embedded cylinder to observe drainage system function and confirm no standing water remains inside the cylinder.

Bollard hydraulic systems require ISO VG 32 or VG 46 anti-wear hydraulic oil (HM type). Do not use regular motor oil or brake fluid as substitutes. Under normal conditions, hydraulic oil should be replaced every 12 months or every 100,000 cycles, whichever comes first. In high-temperature environments (ambient temperature consistently above 40°C) or dusty conditions, reduce the replacement interval to 6-8 months. When replacing hydraulic oil, also replace the hydraulic return filter element and use dedicated filling tools to prevent contamination. For cold regions, use low-temperature hydraulic oil (HV type) that maintains proper fluidity at -30°C.

Rising bollards can be installed on slopes with a gradient not exceeding 5% (approximately 3 degrees). For steeper slopes, site leveling is recommended. Key considerations for slope installation: the column must be installed vertically while the embedded cylinder top flange should be parallel to the road surface slope rather than horizontal, preventing gaps between the column and road surface. The control cabinet should be installed at the top of the slope or on level ground to prevent rainwater flowing into the cabinet. The drainage system outlet must be positioned according to the slope direction for proper drainage. For steeper slopes, consider adding a drainage channel or speed bump upstream of the bollard.

Routine inspection follows a three-tier system: Daily inspection (visual check before operation by security personnel): check for visible column damage or abnormality, verify control cabinet indicator lights are normal, inspect road surface around the bollard for sinking or cracking. Weekly inspection (by facility administrator): operate 3-5 complete rise/lower cycles to confirm smooth operation without abnormal noise, check control cabinet terminal connections for loosening or overheating, verify remote control battery voltage. Monthly inspection (by maintenance personnel): check hydraulic oil level and quality, clean column surface and drain openings, test manual override function, verify all control methods respond reliably, and record equipment status and archive inspection results.

If significant water accumulation is found inside the embedded cylinder, follow these steps immediately: First, disconnect control cabinet power for electrical safety. Use a submersible pump or manual pumping tool to completely drain the accumulated water. Check and clear any drainage pipe blockages. After draining, inspect the hydraulic system for water contamination — if the hydraulic oil appears milky or cloudy (emulsified), completely replace the oil and flush the hydraulic lines. Inspect all seals (O-rings, Y-rings, wiper seals) for aging or damage, focusing on the main seal between the column and embedded cylinder, and the cable entry seal. After identifying the water entry point, perform targeted repairs — replace damaged seals, clear drain pipes, or repair embedded cylinder welds. Conduct a waterproof test after repair to confirm seal integrity.

Our intelligent control system supports remote monitoring and management via Ethernet or 4G wireless network connection to a cloud management platform. Remote management features include: Real-time status monitoring — view each bollard's current operating status (raised, lowered, fault, offline) and cycle count from a computer or mobile phone; Remote control — remotely raise or lower individual bollards or groups through the management platform, ideal for large campuses and multi-entrance sites; Alarm push notifications — when a bollard experiences a fault, unauthorized operation, or abnormal status, the system automatically pushes alert messages to the administrator's phone or email for immediate response; Data analysis — statistics on vehicle pass frequency, time distribution, and peak traffic flow to support entrance management optimization. The system uses multi-level permission management for secure operation.

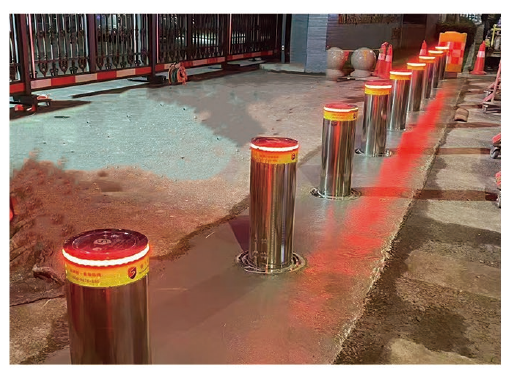

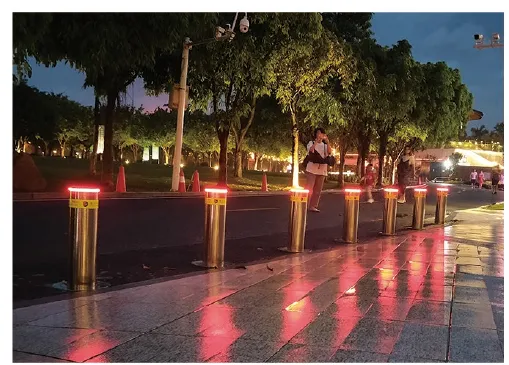

Bollard top LED indicators commonly feature three-color LED rings (red/yellow/green) or single-color rings (red or blue). Standard function definitions: Red steady — bollard raised, vehicle passage prohibited; Green steady — bollard lowered, vehicle passage permitted; Yellow flashing — bollard rising or lowering, caution required; Blue steady — special scenario indication (VIP lane or emergency route). LED indicator control has two modes: Automatic mode — LED color synchronizes with bollard status (red when fully raised, green when fully lowered, yellow during movement); Manual mode — switch colors via the control cabinet or management platform, suitable for traffic guidance and special events. LED beads are waterproof with a service life exceeding 50,000 hours.

When the project site ambient temperature exceeds the standard bollard operating range (-20°C to +50°C), these measures can be taken. For high temperature (above 50°C): select high-temperature hydraulic oil (VG 68 or VG 100 grade), install ventilation or small industrial air conditioning in the control cabinet, add an oil cooler to the hydraulic system circuit, use H-class insulation motors (rated for 180°C), avoid continuous high-frequency operation during peak summer heat, and shield the control cabinet from direct sunlight. For low temperature (below -20°C): standard heating kit (ring heater installed inside the embedded cylinder), thermostat activates heating at 5°C, select low-temperature hydraulic oil (HV type), use cold-resistant batteries; allow the heating kit to operate for 30 minutes before first use in winter conditions.

Ensuring long-term stable operation and reliable safety of rising bollards requires proper management in these areas. System establishment: create equipment archives (including model, serial number, installation date, and maintenance records), develop standard operating procedures and maintenance plans, define responsibilities for operators, daily inspectors, and maintenance personnel. Regular maintenance: follow a four-tier system — daily, weekly, monthly, and annual inspections; conduct comprehensive performance testing and safety function verification during annual inspection. Spare parts management: maintain safety stock of common wear parts (seals, remote control batteries, fuses, hydraulic oil filters), and consider stocking critical components (motors, oil pumps, control boards). Emergency drills: organize emergency operation drills every six months to ensure security personnel can correctly perform manual override and emergency lowering functions.

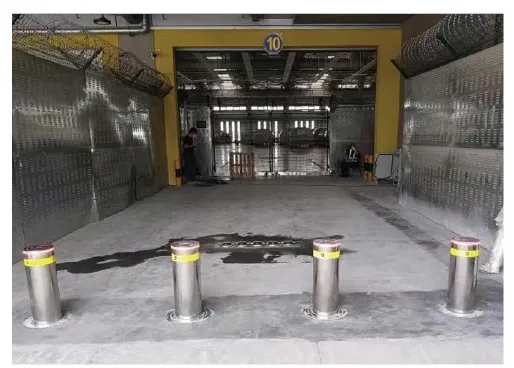

Bollard column wall thickness varies by model and security level. Standard automatic bollards (e.g., YC-01, YC-02) use 304 or 316 stainless steel with 6mm (±0.5mm) wall thickness, suitable for schools and commercial plazas. Heavy-duty bollards (K12 crash-rated) have 8mm to 10mm wall thickness with internal reinforcement ribs, paired with deeper foundations and reinforced cylinders for high-security applications. Industrial hydraulic bollards (PM-HLC series) have 10mm to 12mm wall thickness in high-strength alloy steel or stainless steel, capable of withstanding repeated 40-ton truck traffic. Please confirm the wall thickness specification based on your project security level requirements.

Repair methods for stainless steel bollard surface damage depend on severity. Light surface scratches (oxide layer intact): use stainless steel polishing compound with fine abrasive cloth, rubbing repeatedly in the brushed direction to reduce or eliminate scratches. Deeper scratches (oxide layer damaged): use stainless steel brushed repair sanding belts or abrasive pads to restore surface texture in the original brushed direction, then apply stainless steel protective coating. Severe dents or deformation: column tube replacement or full column replacement is required — contact the manufacturer for replacement parts. For daily maintenance, use soft cloths and avoid steel wool or abrasive cleaning tools to prevent surface scratching.

Hydraulic system pipe dimensions depend on flow rate and pressure requirements. Standard automatic bollards (individual hydraulic pump) use high-pressure hoses with 6-8mm inner diameter and 12-14mm outer diameter, double-wire braided rubber or seamless steel tube construction, rated for 25-35MPa maximum working pressure with burst pressure at least 4 times working pressure. Centralized HPU systems use 10-16mm inner diameter seamless hydraulic steel tubes (ST37.4 or ST52.4 material) with flared or compression-type tube fittings for reliable high-pressure sealing. Installation requires avoiding sharp bends and excessive stretching, with pipe clamps spaced no more than 1 meter apart.

Cable selection between control cabinet and bollard directly affects system stability and safety. Power cable: 3-core × 1.5mm² to 2.5mm² armored power cable (RVV or YJV type) rated for minimum 300/500V. Signal control cable: 4-core to 8-core × 0.75mm² to 1.0mm² shielded control cable (KVVP type) with shield grounded at one end for EMI protection. Maximum cable length is 50 meters — beyond this increase cable cross-section for voltage drop compensation: 50-100 meters go one gauge larger, over 100 meters go two gauges larger or use a local control cabinet. All cables should be installed in galvanized steel conduit or PE protective tubes during foundation construction for future inspection and replacement.

Sudden bollard stoppage during operation is typically caused by one of these conditions, check in order: Thermal protection activated — motor or hydraulic pump triggered overheat protection from continuous high-frequency operation, allow 15-30 minutes cooling before automatic reset, review usage frequency. Overload protection — column encountered obstruction or guide rail binding, clear obstruction and power cycle to reset, inspect column travel path. Emergency stop button pressed — check control cabinet panel and remote panel for pressed emergency stop buttons, twist to release. Power abnormality — check control cabinet input power, fuses, and residual current device. Hydraulic oil over-temperature — continuous operation raised oil temperature above set point (typically 85°C), allow system to cool before resuming, consider adding oil cooler or reducing frequency.

For security-grade bollard installations, UPS backup power is strongly recommended. UPS capacity guidelines: Single standard bollard (350W motor) — 1000VA/600W+ UPS supporting 15-20 complete cycles. 4-6 bollard system — 3000VA/2400W+ UPS. 8+ bollard system — centralized UPS solution or diesel generator backup recommended. UPS type: online (double-conversion) UPS is recommended for voltage regulation and zero transfer time, avoiding the momentary power interruption that offline UPS types cause during battery switching. Battery capacity should be calculated based on required backup time and expected operating cycles — minimum 30 minutes backup time is generally recommended.

We provide sample testing services for customers with bulk purchase intent. Sample policy: standard models (e.g., YC-01, YC-03) can be supplied as 1-2 sample units at normal sales price, with the sample cost fully deductible from the first bulk order when the agreed quantity is reached. Sample delivery follows standard lead times (15-20 working days), with rush processing available (additional fee applies). Each sample shipment includes complete technical documentation: product manual, installation drawings, test reports, and wiring diagrams. For customers with special testing requirements (e.g., waterproof depth verification, continuous operation endurance testing), we can coordinate test protocols in advance and provide corresponding testing conditions and technical support.

Coastal environments with high airborne salt content and humidity demand enhanced corrosion protection for bollards. We recommend the following configuration for coastal projects: column material — 316 stainless steel (contains molybdenum, providing 3-5 times better chloride corrosion resistance than 304 stainless steel); all exposed fasteners (bolts, nuts, washers) — 316 stainless steel; embedded cylinder — hot-dip galvanizing plus epoxy coating (dual corrosion protection); hydraulic piston rod — hard chrome plating plus ceramic coating; seals — fluoroelastomer (FKM/Viton) replacing standard NBR material; control cabinet — stainless steel enclosure with IP66 protection rating. Coastal bollard installations should undergo comprehensive corrosion inspection and cleaning maintenance every three months.

Proper drainage system design at the bollard installation site is critical for equipment service life and operational reliability. Basic requirements: the embedded cylinder must have a drain hole or drain pipe connection at the bottom, connected to an independent drainage pipe or nearby stormwater drain. Drain pipe diameter must be at least 110mm (PVC), with a minimum 2% slope (2cm drop per meter) to ensure gravity drainage. A check valve or water trap must be installed at the drain outlet to prevent backflow and odor entry into the cylinder. Consequences of inadequate drainage: accumulated water inside the cylinder causes prolonged immersion of hydraulic and electrical components, leading to failures; winter freezing of accumulated water creates ice expansion force that can damage the cylinder structure and column guide mechanism; water corrosion accelerates aging of welded joints; blocked drains allow water to rise to the control cabinet cable entry, causing leakage and short circuits.

Standard automatic bollards produce the following noise levels during normal operation: Electro-hydraulic drive — 55-65 dB during rising, 45-55 dB during lowering (comparable to normal conversation or air conditioner outdoor unit noise). Electro-mechanical drive — 50-60 dB during rising, 40-50 dB during lowering (slightly quieter than hydraulic models). For noise-sensitive environments such as hospitals, school buildings, and libraries, electro-mechanical drive bollards are recommended, or use these noise reduction measures: install vibration-damping rubber pads between the cylinder and column; use noise-dampening seal design in the control cabinet; select low-noise piston pumps or internal gear pumps for hydraulic systems. During quiet hours (23:00-07:00), bollard operation frequency can be limited through the control system to minimize noise impact.

Automatic rising bollards are operated via remote control or control panel when powered. In the event of power loss or malfunction, manual override is available. Standard manual override methods: Hydraulic bollards — equipped with a manual emergency pump or pressure release valve. Use the special handle or wrench to operate the manual pump for raising; open the pressure release valve to allow the column to slowly descend by gravity. Electro-mechanical bollards — equipped with a manual crank or handwheel. Insert and rotate the crank to drive the column up or down. Semi-automatic bollards are purely mechanical (key + manual operation) in daily use. All bollards feature mechanical locking in the raised position, ensuring the column will not descend unexpectedly. For scenarios requiring extended lowered status (e.g., holidays), the bollard can be locked in the lowered position via the control system.

When bollards are integrated with license plate recognition (LPR) systems, recognition failures may occur due to: dirty or obstructed license plates, insufficient light or strong glare, excessive angle deviation, unregistered plates, or unregistered visitor vehicles. Handling procedures: on recognition failure, the system automatically triggers voice or display prompts for the driver to reposition or re-enter for another attempt. After three failed attempts, the system automatically transfers to a manned verification station where security personnel verify the vehicle through video and remotely authorize passage. For visitor vehicles, a QR code scanner can be installed at the entrance — visitors scan to register, and the system validates or the host remotely approves access. All recognition failure records are automatically archived with captured images, timestamps, and resolution methods for future review and system optimization.

The complete bollard project cycle includes production delivery and on-site installation. Production phase: standard models require 15-20 working days from order confirmation to factory shipment; custom models require 25-35 working days; large bulk orders may require phased delivery based on production capacity. We recommend placing orders 30-45 days in advance to secure production capacity. Installation phase: single bollard installation (including foundation excavation, concrete pouring and curing, equipment installation and wiring, commissioning and acceptance testing) takes approximately 5-7 days. For multi-bollard systems, estimate based on crew size and weather conditions — a typical 10-bollard project requires approximately 10-15 days total installation time. We recommend building 10-15 days of buffer time into project planning to accommodate concrete curing, weather changes, and unforeseen site conditions.

Bollard pricing is based on product configuration and technical parameters. Main factors include: Drive type — automatic hydraulic models are priced higher than semi-automatic mechanical models; centralized HPU multi-bollard solutions have lower per-unit cost. Column material — 316 stainless steel costs more than 304 stainless steel; special surface treatments like PVD coating add additional cost. Security level — K12 crash-rated models command significantly higher prices due to thicker columns, reinforced foundations, and certification testing costs. Control system configuration — basic remote control is the most economical; advanced features like license plate recognition and remote management increase system cost. Purchase volume — volume discounts apply for bulk orders; special pricing is available for 50+ unit orders. Contact our sales team with your project requirements for an accurate quote. We provide free solution design and budget estimation services.
